KALD COLD ASPHALT PATCING MATERIAL
Description
Kald is a cold applied asphalt patching material that is consisted of asphalt (modified with SBS polymers), modifiers (anti-stripping agents) and aggregates.
Uses
- Highways,
- Surface dressing roads,
- Airports,
- Sport centers,
- University campuses,
- Parking areas,
- On every kind of patching repair where hot-mix asphalt is used.
Advantages
- Summer-winter, wet-dry on every condition it makes it possible to make maintenance on roads,
- Cold applied,
- Friendly with environment, does not pollute air and environment, does not contain VOC.
- Practical application,
- Economical,
- No need to apply tack-coat
- Minimum 12 months storable in its original package.
Technical Specification
22.11.2002 dated report of Turkish General Directorate of Highways
* Marshall Briquettes are prepaired under 2x50 impacts.
|
Elek Açıklığı
|
KarışımGradasyonu
|
Bitüm miktarı (agreganın)
|
Briket HacimÖzgül Ağırlığı*
|
Stabilite, *(25°C)
|
Akma,(25°C)
|
|
İnç mm
|
%
|
gr/cm3
|
kg
|
mm
|
|
3/8
|
9,5 mm
|
100
|
4,88
|
2,257
|
1075
|
2,8
|
|
No.4
|
4,75 mm
|
75,0
|
|
No. 10
|
2,0 mm
|
32,5
|
|
No.40
|
0,42 mm
|
12,6
|
|
No.80
|
0,1 80 mm
|
9,3
|
|
No.200
|
0,074 mm
|
6,9
|
Kald Application

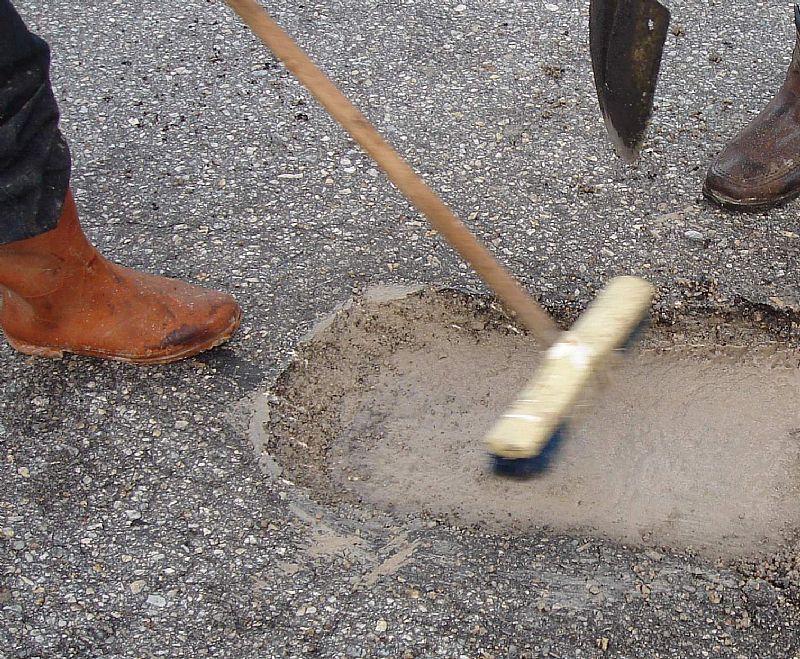

- The surface that will be repaired should be cut perpendicular and all the loose material on the surface should be cleant,

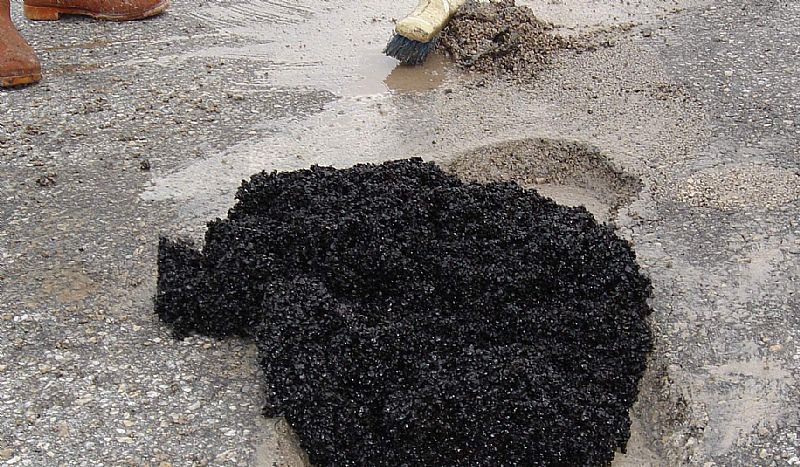

- Sufficient amount of Kald will be poured into the patch and will be spreaded with a shovel or rake,

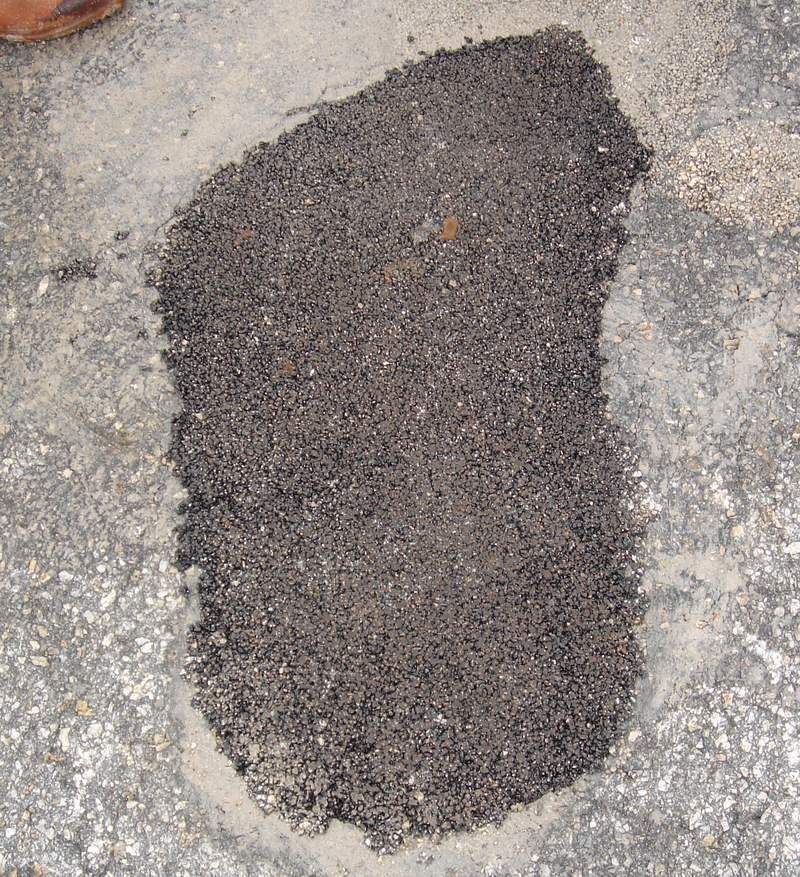

- Adjust the surface a little convex considering the compaction amount.

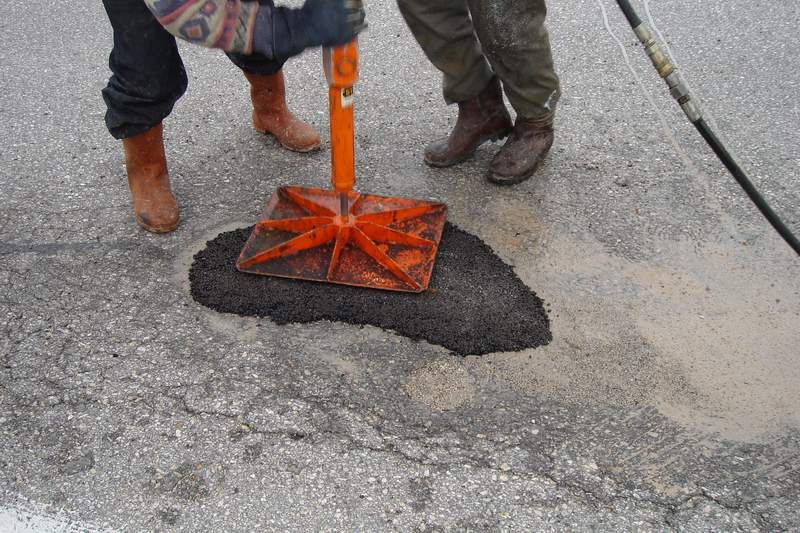

- C ompact with a roller or compactor. After compaction it can be opened to traffic immediately.
Click here for application data.
